All kits include components and fixtures
for a complete functional sauna:
A) Framing - of 2"x2"
Oregon douglas fir to prevent warpage and dry rot. Frame fastened
with galvanized fasteners.
B) Insulation R11 (3-1/2")
Owens-Corning fiberglass with foil-back on walls and ceiling;
vapor barrier of type c Rreynolds building foil on walls and
ceiling.
C) Exterior Siding of 11/32"
rough-sawn fir plywood (1/2" T & G red cedar available
optionally). Trim included.
D) Interior Paneling of
1"x4" (full 3/4" thickness) clear kiln-dried,
T & G small V-joint for neat appearance wqith a choice of
4 different woods; base rim of 2"x4".

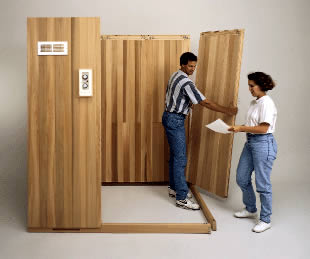

E) Exclusive Concealed Interlocking
System locks walls together
with the greatest strength and neatest appearance - eliminates
the need for ugly interior moldings used by others.
F) Pre-hung Door - V.G.
Oregon douglas fir rails to prevent warpage, tempered thermopane
glass for a spacious, open look; redwood or hemlock jamb, stoppers,
casing and threshold; hardware - 4"x4" butt hinges
(3, brass plated), ball catch (keeps door securely closed, unlike
self-closing hinge).
G) Finlandia or Harvia Heater:
with built-in or optional wall-mounted control panel including
60 minute timer.
H) Benches: constructed of S4S 2"x2" tops with
1/2" spacing with 2"x4" facing with eased edges
to eliminate sharp edges & slivers. All fasteners applied
from bottom to eliminate ugly nail holes and possibility of
nail head protruding to burn bather.
I) Head/back rest(s): for
upper benches, tapered 16"x20".
J) Heater Fence: for safety,
of 1"x2" and 2"x2".
K) Super Deck: flooring
squares for walking area of floor - removable, sanitary, washable,
non-skid synthetic material.
L) Vents: lower - neatly
cut into room base; upper - supplied for pre-cut space.
M) Light: Vapor proof, wall-mounted
P5511 .
N) Stones: from Finlandia;
periodite - igneous type - best for heat retention and safety.
O) Accessories Provided:
wooden bucket with liner, dipper, thermometer, and bronze plexiglass
bathing sign.
P) Instruction: detailed
instructions provided for assembly.
Preparations ~ Options ~ Services
We can provide a complete professional installation service (depending
on your location) including these standard preparation steps:
A) Complete installation
of your pre-fab sauna including delivery.
B) Electrical Routing and
supply lines i.e. 120 vac lighting/outlets and 220 vac heater
supply (specify single phase or 3-phase)
C) Optional drain line plumbed
into the concrete or platform sub-floor.
D) Standard floor finishes
included flooring sealant or linoleum. Options include tile,
cement, or sprung wood decking.
*All customized options beyond standard preparations will be
itemized and amended to the final cost.
Expect quality, beauty
and the highest degree of
craftsmanship in all Northernlight Saunas
|
